Portable Paediatric Autorefractor plusoptiX A12C
Plusoptix provides binocular, hand-held vision screening devices, especially for infants, children and uncooperative patients.
Studies show that the best visual outcomes depend on the early detection and treatment of vision disorders. Therefore, paediatric ophthalmologists recommend annual vision screening for all children starting ideally at the age of one year. If there is a family history of eye disorders, earlier screening is advised at the age of 6 to 8 months old.
Conventional visual acuity testing can only be performed in older, cooperative children.
Two healthy eyes are critical to a child’s well-being and development. A visual disorder compromises social and scholastic achievement, can be dangerous in traffic and restrict occupational choices later in life.
The Plusoptix device provides an accurate measurement within seconds and these results are compared to pre-set age-specific thresholds. After a successful measurement is completed, results are displayed to be interpreted by the health care professional.
Screenings can be performed binocularly or monocularly, ideal for kids with misaligned eyes or monocular eye conditions.
This device will generate a full report of the refraction as well as a picture the eye/s.
This device has a built-in database system, that allows you to populate the kids’ details prior to performing a measurement.
Plusoptix Screening Devices
The Plusoptix A12C range of devices detects refractive errors and eye misalignment, which are the most common causes of amblyopia (lazy eye).
Measurements are non-invasive, requiring no physical contact with the child. A sound target attracts fixation, and no further cooperation is required to perform a measurement.
Features
The measuring principle is based on eccentric photoretinoscopy: infrared light is projected through the pupils onto the retina. Depending on the refractive error, the reflected light forms a specific brightness pattern within the pupil. The spherical refraction is calculated based on this crescent pattern. To determine cylinder and axis, the same measurement is repeated in three meridians. The measurement with infrared light is completely innocuous. Infrared light is also contained in daylight and not visible.
Quality Guaranteed
Documentable
Accurate
Reliable
Studies with plusoptiX Vision Screener
| Year | Title | Reference | Results |
|---|---|---|---|
| 2016 | A comparison of plusoptiX A12 measurements with cycloplegic refraction | AAPOS 2016, Volume 20, Issue 4, Pages 310–314 | Mean patient age 7.63 ±3.41 years
Mean difference of sphere: Mean difference of cylinder: Mean difference of axis: Sensitivity, specificity for myopia: 86%, 93% Sensitivity, specificity for astigmatism: 85%, 98% Sensitivity, specificity for hyperopia: 40%, 100% |
| 2014 | Photoscreeners in the Eye Office: Compared Testability and Refractions on High-Risk Children | Am J Ophthalmol 2014; article in press | Patient age 1 to 16 years (mean patient age 6.0 ±3.4 years)
Mean difference of sphere: Mean difference of cylinder: Mean difference of spherical equivalent: |
| 2012 | Screening for amblyopia risk factors in pre-verbal children using the plusoptiX photoscreener: a cross-sectionals population-based study | Br J Ophthalmol 2012; 96:83-86 | Patient age 6 to 36 months (mean patient age 16.95 ±8.59 months)
Mean difference of sphere: Mean difference of cylinder: Mean difference of spherical equivalent: |
| 2011 | Detecting Small Angle Strabismus With The plusoptiX Photoscreener | AAPOS 2011 Poster#042 | Patient age 6 months to 18 years
Mean difference of prism diopters: |
| 2010 | Screening for refractive errors in children: The plusoptiX S08 and the Retinomax K-plus2 performed by lay screener compared to cycloplegic retinoscopy | J AAPOS 2010; 14:478-483 | Patient age 3 months to 11 years (mean patient age 5.2 ±2.6 years)
Mean difference of spherical equivalent: Mean difference of cylinder: |
Paediatric Autorefractor Device Model Comparison
All Plusoptix Binocular Autorefractors share the same measurement technology and algorithm. Hence, measurement accuracy is identical across all available device models. The devices differ in mobility and documentation options as specified below.
| Stationary in one exam room | Mobile between multiple exam rooms or locations | ||
|---|---|---|---|
Paediatric Autorefractor plusoptiX A16 |
Paediatric Autorefractor plusoptiX A12C |
Paediatric Autorefractor plusoptiX A12R |
|
| Letter-size report& self-adhesive label | yes / yes | yes / yes | yes / yes |
| LAN / WIFI interface | yes / yes | no / yes | no / no |
| Connection to EMR / plusoptiXconnect | yes / yes | yes / yes | no / no |
| External monitor interface | yes (DVI) | no | no |
| Power supply | Medical power adapter (100 – 240 V AC / 50 – 60 Hz) |

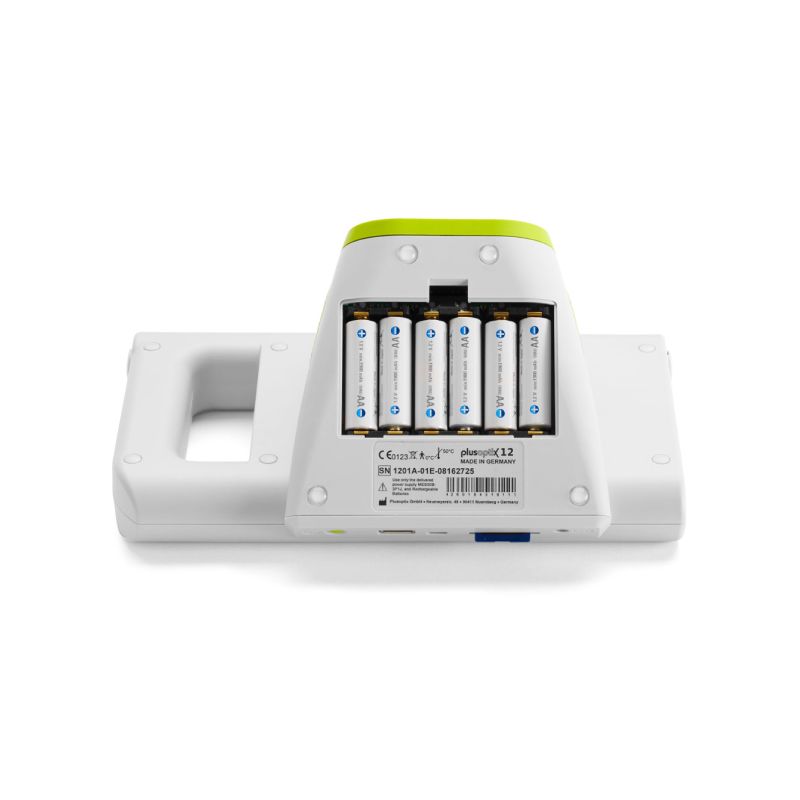

6x rechargeable batteries (Standard AA size) |
6x rechargeable batteries (Standard AA size) |
| Hardware Features | |||
| Touchscreen operation | 4.3 Inch (resistive) | 5.7 Inch (capacitive) | 4.3 Inch (resistive) |
| Weight | 26.5 oz (0.75 kg) | 35.3 oz (1.0 kg) | 28.2 oz (0.8 kg) |
| Interfaces | 4 x USB, IR, DVI, LAN (RJ-45), WLAN | 2 x USB, IR, SD, WLAN | 2 x USB, IR, SD |
| Identical Features | |||
| Measurement Technology | Binocular infrared photo retinoscopy with unique 54 LED illumination | ||
| Measurement Range | -7.00 to +5.00 dpt in 0.25 dpt increments | ||
| Pupil Size | 3.0 to 8.0 mm in 0.1 mm increments | ||
| Acquisition time | dynamic, in average 0.5 sec. | ||
| Measuring distance | 3.3 ft ± 2 in (1 m ± 5 cm) | ||
| Fixation target | Warble sound and Smiley face | ||
| Certification | |||
| Service Features | |||
| Warranty | Hassle-free warranty (can be extended for a period of up to 10 years after initial commissioning) | ||
| Operating Cost | None, because no calibration or maintenance is needed | ||
